1. Equipment introduction and the main principle

According to the lavabo platform and basin between the welding for the same plane curve characteristics, using four servo motors, four axis linkage, centralized control for welding. When welding the first use of welding vacuum, the workpiece is fixed on the platform, in accordance with the characteristics of parts edge positioning, reusing principle of resistance welding seam welder with CNC CNC system, servo motor drive "welding platform along the X axis linear moving from left to right, the welding arm to move along the Y linear axis, welding head move up and down along the Z axis linear, welding electrode on the roller along A axis rotate 360 degrees of freedom", the 4 axis linkage, automatic welding in accordance with the program.

X axis: linear reciprocating moving back and forth for the workpiece and platform direction;

Linear axis: Y direction before and after welding is used to arm moving back and forth;

Z: linear axis is used to welding head to move up and down;

A rotation axis, used to welding electrode on the wheel was rotated 360 degrees of freedom.

2. Multi-angle photographs and videos

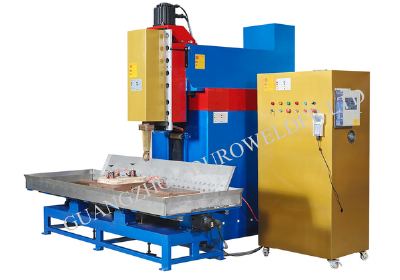

2.1 equipment photos from multiple perspectives

3. The equipment is mainly advantages and characteristics

3.1 equipment without being limited by the welding basin mesa length;

3.2 CNC CNC intelligent control, weld, the welding good consistency, the product is beautiful;

3.3 with automatic data sampling, automatic calibration function, using the sampling data of feedback and automatically determine the basin shape of welding and welding trajectory. Different shape, different size of the basin, the welding electrode arm for automatic data acquisition and positioning, feedback to the CNC system, and then a numerical control system of the welding electrode arm instruction, according to the shape of the basin of a batch of welding.

3.4 plate type so that when the welding electrode structure under the appearance of the welding mark is small, greatly save the processing time and cost, more important, to avoid the rotating axle bush turned the conductive uneven phenomenon.

3.5 design use fixed number of year: more than 15 years.
