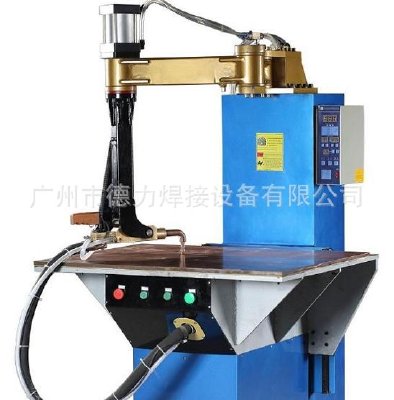

The machine features

1, this besides has the characteristic of ordinary spot welding machine, welding machine platform was: under the large range of welding, after welding workpiece level off, not easy to deformation.

2, electrodes for joint arm type, welding is convenient, need not move artifacts, only move the welding gun, welding across the table.

3, welding platform at the same time can be within 200 mm any elevator, convenient and high welding products in different shapes.

4, manipulation, flexible, safe and reliable.

The main technical parameters

Rated power: 50 kva - 150 kva

Rated voltage: 220 v / 380 v to 420 v (optional) : frequency 50 hz / 60 hz

Air pressure: 0.5 Mpa or higher;

Electrode pressure: acuity 2.2 KN.

Mesa size: 800 * 1000 mm;

Mesa height: 750-950 - mm (200 mm) automatically.

Welding torch forms: horizontal/vertical type (choose one or two);

Welding torch length: 395 mm (can match vertical welding torch);

Rated for rate: 50%

The cooling water volume: 4-6 l/min

Electrode size: 16 x 50 mm taper Φ: K = 1:10

Equipment size: length: 1280 mm x width: 1000 mm x height: 1890 mm;

Equipment weight: 850 kg
