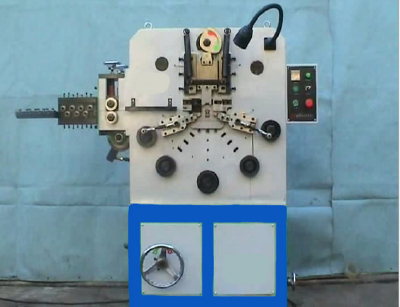

Can roll material wire diameter: ø 0.5 - ø 3.5 mm (wire ø 1.0 - ø 4.5 mm)

Can spring maximum overall diameter: Ma x 80 mm ø

Biggest graviation and feeding speed: 0-110 - m/min

Wire feeding instruction value: + / - 0.01 ~ 9999.99 mm

CAM instruction value: + / - 0.1 ° ~ + / - 359.9 °

CAM transmission speed: 1 ~ 60 RPM

Wire feeding servo motor: 5.5 KW

CAM servo motor: 5.5 KW

Servo motor turn core: 1 kw

Power: 380 V + 10% V 50 hz

Size: 1320 * 730 * 1720 mm

Weight: 1800 kg

The characteristics and functions:

Adopt computer control system imported from Taiwan and servo motor imported from Japan sanyo;

Computer into Chinese interface, easy operation, accurate positioning, computer can control three to eight servo motor,

All motor can be synchronous or run alone;

A precision testing tracking devices, such as there are unqualified products can automatically stop;

According to the working condition on the screen, can at any time to modify products, such as the outer diameter of Angle;

Mechanical design of automatic lubricating oil supply, ensure the equipment running for a long time;

Automatic stop when wireless, disconnection, tangled lines design and line automatic acceleration, make production easier and effective;

Suitable for producing twist spring, straight spring, pagoda spring, tension spring, rectangular spring, wire forming, steel volute spring, spring, and all sorts of fancy spring, complex and difficult spring.
