One, the machine features

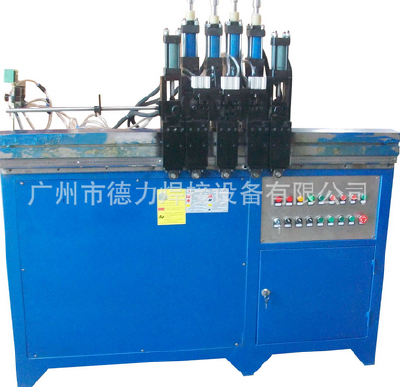

This machine is the special equipment of steel wire bending, suitable for home appliances, furniture of steel wire, steel wire products industry frame bending operations. This machine has high production efficiency, low energy consumption, easy operation, low pollution, low labor intensity.

Specifications of this machine is designed according to the specifications of the products, so, the largest circumference products should not exceed the maximum length of wire machine, also can not be less than the minimum size.

The use of the machine performance and quality of work and machine installation, commissioning and maintenance directly related, therefore, must be in strict accordance with the requirements specified by this manual related installation, debugging and maintenance of the implementation process.

Second, the basic parameters

1. The installed capacity.............................. 3.75 KVA;

2. The largest length of wire material........................ 2200 mm;

3. The minimum bending size........................ 170 * 200 mm;

4. The largest bending capacity........................ 6 * ￠5 mm/Q235.

5. Maximum pressure hydraulic system........................ 7 mpa;

6. Power supply.............................. 3/380-440 - v, 50 to 60 hz;

7. Overall dimensions (length * width * height)............ 2150 * 930 * 2150;
